Introduction

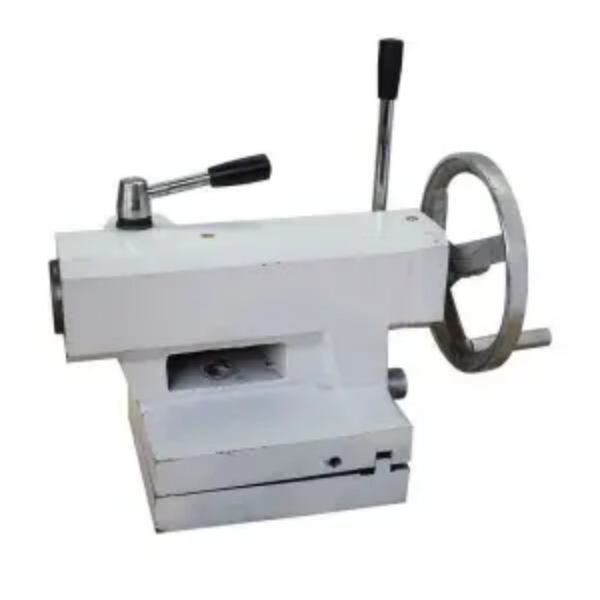

Tired of long workpiece vibration, misalignment issues, or tailstocks that lack durability? As a professional machine tool accessory manufacturer, Shenzhen Metalcnc Tech presents our high-performance Lathe Tailstock Assembly – engineered for both CNC and conventional lathes to deliver stable workpiece support, pinpoint accuracy, and long-lasting reliability. Below is a concise guide to help you choose, use, and maintain the tailstock effectively.

How to Choose the Right Lathe Tailstock

Match Lathe & Workpiece Specs: Compatible with lathes with bed width 200-400mm and spindle center height 80-150mm (custom solutions for non-standard models available). Opt for the heavy-duty model (reinforced cast-iron housing, 150kg load capacity) for workpieces >500mm or >50kg; standard model suffices for lightweight parts (≤20kg).

Prioritize Precision Features: Our tailstock features ≤0.002mm runout for concentricity, precision-ground Acme thread lead screws (0.01mm micro-adjustment), and 500-800N clamping force – ensuring stable positioning without damaging the lathe bed.

Align with Machining Needs: Standard model (MT3/MT4 Morse taper center) for basic support; multifunctional model (removable center + drill chuck adapter, MT2-MT5 compatible) for drilling/reaming/tapping. Housing: HT200 cast iron (heat-treated); spindle: 45# steel (quenched and tempered) – avoid deformable aluminum housings.

Factory Direct Advantage: Competitive pricing with no middlemen. Every unit undergoes 3-stage quality inspections (concentricity, load, wear resistance) – request test reports for verification.

Quick Operation Guide

Installation & Alignment: Slide the tailstock onto the lathe bed, align with spindle center (deviation ≤0.003mm via dial indicator), and lock the bed clamp evenly. Use live centers for rotating workpieces, dead centers for stationary tasks; keep Morse taper clean and lubricated.

Workpiece Setup: Position the center 10-15mm from the workpiece end for thermal expansion. Use brass-tipped centers for soft materials (aluminum/copper) and carbide-tipped for hardened steel. Add a steady rest for workpieces >1m to prevent vibration.

Multifunctional Use: For drilling/reaming/tapping – remove the center, insert MT3/MT4 drill chuck adapter, secure the tool, and feed slowly (1-2mm/rev for steel, 3-5mm/rev for aluminum). Clean the adapter after use.

⚠️ Safety & Maintenance Tips

Critical Safety Rules

Do not exceed load capacity (standard: 50kg; heavy-duty: 150kg).

Wear safety goggles and gloves when adjusting the tailstock.

Confirm the tailstock is locked and debris-free before starting the lathe.

Maintenance Schedule

Frequency Tasks

Daily Wipe lead screw, taper, and clamp; remove chips/debris.

Weekly Lubricate with ISO VG32 machine oil; retighten loose bolts.

Monthly Inspect center wear (replace if runout >0.005mm); clean taper.

Quarterly Test clamping mechanism; adjust tension bolt if loose.

Common Troubleshooting

Drift: Tighten lead screw lock nut or replace worn screws (genuine spare parts available).

Concentricity issues: Clean taper/center; check lathe bed alignment.

Hard adjustment: Apply more lubricant – do not force the handwheel.

Why Choose Shenzhen Metalcnc Tech?

Precision CNC-machined components for consistent performance.

Durable HT200 cast iron housing and heat-treated 45# steel spindle.

Free installation guidance, customization services, and 12-month warranty (extendable to 24 months).

Conclusion

A reliable lathe tailstock is key to precise, efficient machining. Shenzhen Metalcnc Tech’s Lathe Tailstock Assembly balances performance and usability for workshops of all sizes. Visit www.metalcnctools.com for product specs, operation manuals, or personalized quotes.
