Shenzhen Metalcnc Tech Co., Ltd, a professional provider of industrial CNC machining solutions, has released an upgraded high-precision CNC tool setting gauge, helping global machining factories achieve accurate, fast and repeatable tool setting operations.
Tool setting is one of the most critical steps in CNC machining. Manual tool setting is easily affected by human error, resulting in inconsistent tool length data, dimensional deviation of finished products and increased scrap rate. The new upgraded tool setting gauge is developed to standardize tool setting procedures, eliminate manual errors and stabilize overall machining accuracy for long-term batch production.

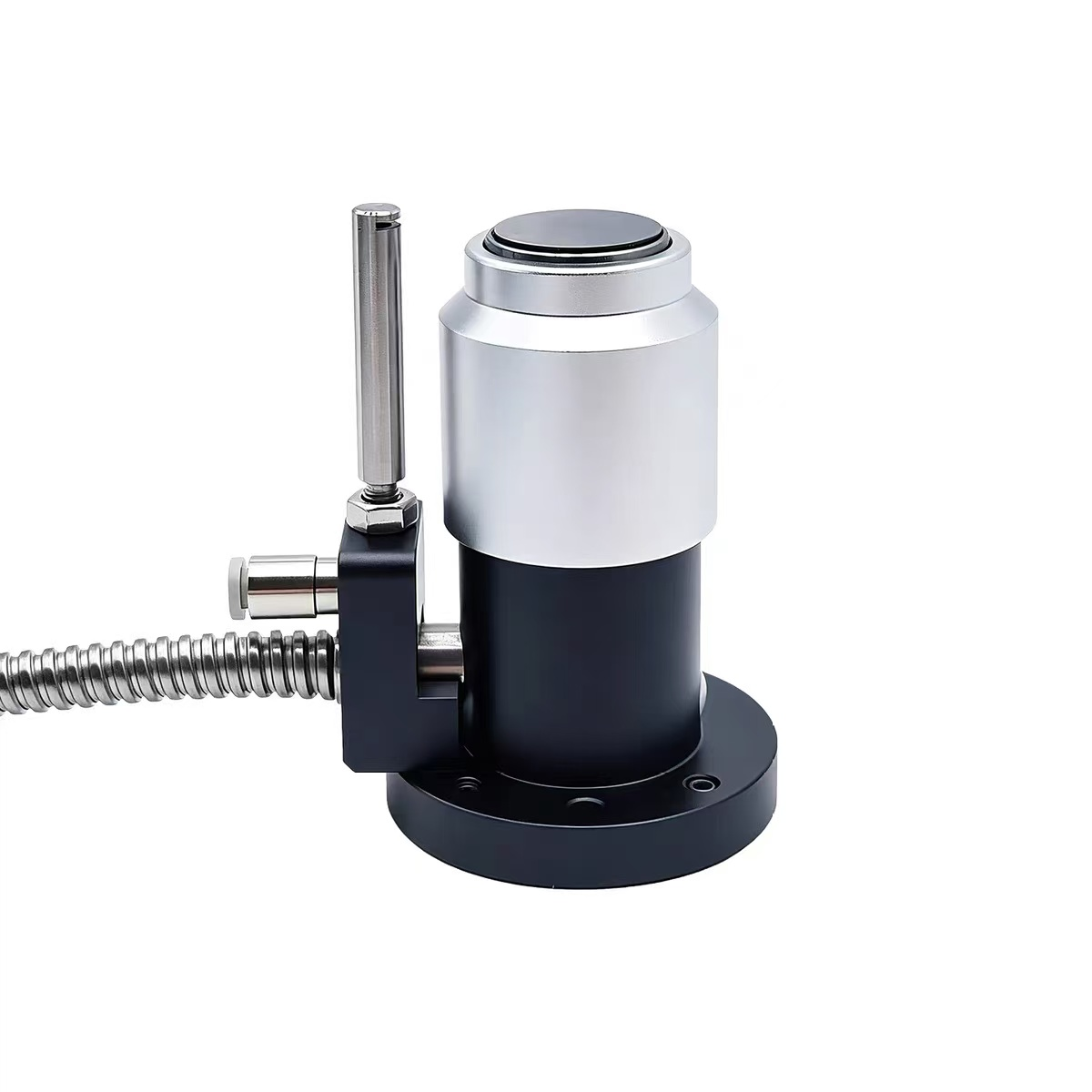

The tool setting gauge features a high-rigidity metal body and precise micro-contact sensing structure, achieving accurate tool length measurement with ultra-low error. It supports fast tool setting for end mills, drills, taps and various forming tools, suitable for vertical machining centers, milling machines, drilling and tapping centers. With high repeat positioning accuracy, it ensures consistent tool setting data for mass production and effectively avoids dimensional fluctuation of workpieces.
Equipped with waterproof and dustproof protection level, the tool setting gauge can adapt to complex workshop environments with cutting fluid splashing and iron chip accumulation. The compact and durable structure resists collision and vibration during machine operation, maintaining stable sensing performance for a long time. The simple installation and wired/wireless optional design greatly improves workshop operation convenience and reduces auxiliary processing time.
Correct daily maintenance can effectively prolong the service life and ensure long-term accurate sensing. Clean the probe surface and contact area before use to prevent iron powder and impurities from affecting induction sensitivity. Avoid violent impact and excessive extrusion during tool setting process. Regularly check the wire connection and sensing flexibility. Keep the equipment dry and clean after work, and conduct accuracy calibration regularly to ensure stable tool setting effect.
In summary, the high-precision CNC tool setting gauge is a necessary precision accessory for standardized CNC workshops. It improves machining consistency, reduces defective rates and saves manual adjustment time, bringing obvious efficiency and quality improvement to precision manufacturing enterprises.
Shenzhen Metalcnc Tech Co., Ltd focuses on R&D, production and sales of industrial CNC equipment and machine tool accessories, providing reliable products and professional services to global customers. For more information about tool setting gauges, please contact our sales team.
About Shenzhen Metalcnc Tech Co., Ltd
Shenzhen Metalcnc Tech Co., Ltd is a professional manufacturer dedicated to the R&D, production and sales of industrial CNC machining equipment. Committed to technological innovation and customer satisfaction, the company provides stable, efficient and customized automation solutions for manufacturing enterprises around the world.
